TS605
HEAVY DUTY LARGE DIAMETER CORING

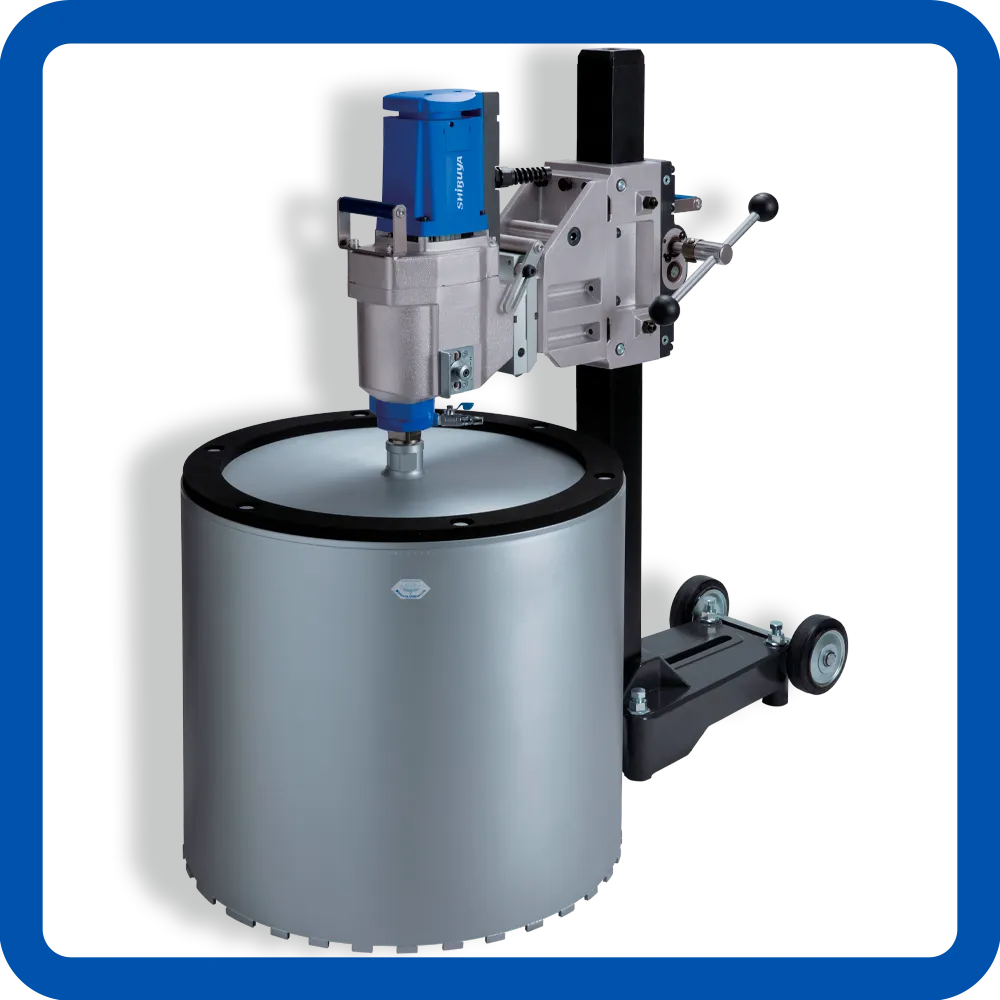

Shibuya TS605 H2531 Diamond Core Drill. The SHIBUYA TS605 H2531 is an ultra heavy-duty diamond core drill system designed for extra large diameter concrete coring applications up to 600 mm (24"). Equipped with the powerful H2531 motor, high-torque performance, and a robust drilling stand, it delivers exceptional stability, precision, and reliability for demanding infrastructure, industrial, and large-scale construction projects.
Key Features
- Heavy-duty Shibuya TS605 H2531 diamond core drill system designed for extra large diameter concrete coring applications up to 600 mm (24") with 130 mm spacer.
- Powerful H2531 motor with high torque output for demanding reinforced concrete drilling operations.
- 3-speed gearbox system provides flexible drilling speed selection for different core bit sizes and concrete conditions.
- Built-in motor overload protection helps improve machine durability and operational safety during heavy-duty coring works.
- Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage for safer operation.
- Multi-position water swivel inlet allows convenient water connection from different working positions.
- Right and left-hand feed handle positions improve operator convenience and control during drilling.
- Strong TS-605 drill stand with 73 mm square column design delivers excellent drilling stability and precision.
- Positive carriage lock system enhances machine stability during transportation and operation.
- Quick release spacer system enables easy mounting and dismounting of the motor for improved efficiency on site.
- Designed with high-quality Japanese engineering for professional contractors and industrial coring specialists.

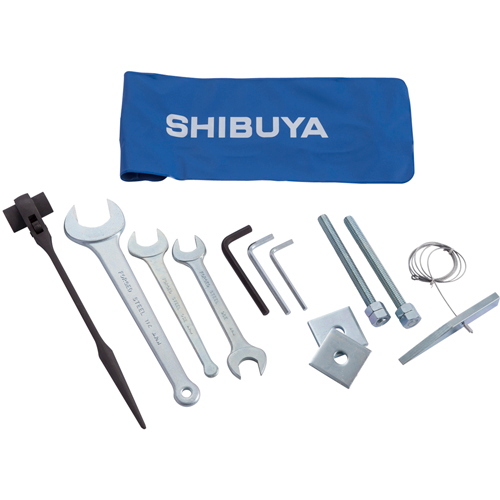

- Tool kit including wrenches and Allen keys supplied for maintenance and daily operation convenience.
Ideal Applications
- Large diameter reinforced concrete coring
- Infrastructure and bridge construction
- Highway and tunnel construction projects
- Industrial plant and factory construction
- Utility and municipal engineering works
- Deep concrete coring applications
- Mechanical and electrical service installations
- Large pipe and duct penetration works
- Water treatment and power plant projects
- Professional continuous-use coring operations
- Heavy civil engineering projects
- Structural modification and demolition preparation works
Why Contractors Choose TS605
- Designed for contractors handling extra large diameter coring up to 600 mm (24").
- High-torque H2531 motor provides outstanding drilling performance in heavily reinforced concrete.
- Heavy-duty stand construction ensures maximum stability and drilling accuracy.
- Ideal for demanding infrastructure, industrial, and civil engineering projects.
- Three-speed gearbox allows optimized drilling performance across various bit sizes.
- Long drilling stroke improves productivity for deep coring applications.
- Built-in overload protection enhances machine durability and minimizes downtime.
- P.R.C.D. safety system improves operator protection on site.
- Japanese engineering ensures exceptional reliability and long service life.
- Built for contractors who require maximum power, durability, and performance in the toughest coring conditions.
Recommended Usage
- Professional Concrete Coring Contractors
- Infrastructure Contractors
- Civil Engineering Companies
- Bridge and Highway Contractors
- Industrial Plant Contractors
- Utility Installation Contractors
- Power Plant Construction Projects
- Water Treatment Facility Contractors
- Large Commercial Development Projects
- Heavy Industrial Maintenance Contractors
- Government Infrastructure Projects
- Contractors requiring continuous heavy-duty coring operations
Product Specification

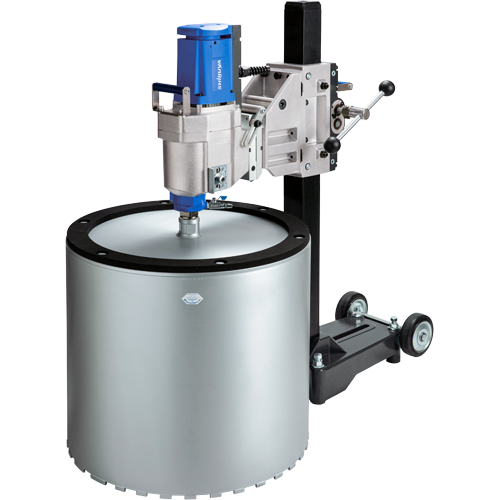

| Model | TS605FS |
|---|---|
| Motor Model | H2531 |
| Power Rated (WATT) | 3,450 |
| No Load Speed (RPM) | 175 / 350 / 700 |
| Rated Load Speed (RPM) | 105 / 210 / 420 |
| Preferred Core Bit Dia. (MM) | 110 - 600 |
| Base Type | Fixed Anchor |
| Base Size (MM) | 230 x 400 |
| Column Height (MM) | 1106 |
| Travel Length (MM) | 634 |
| Weight (KG) | 65.1 |
