TS405 H2231
HEAVY DUTY CORING PERFORMANCE

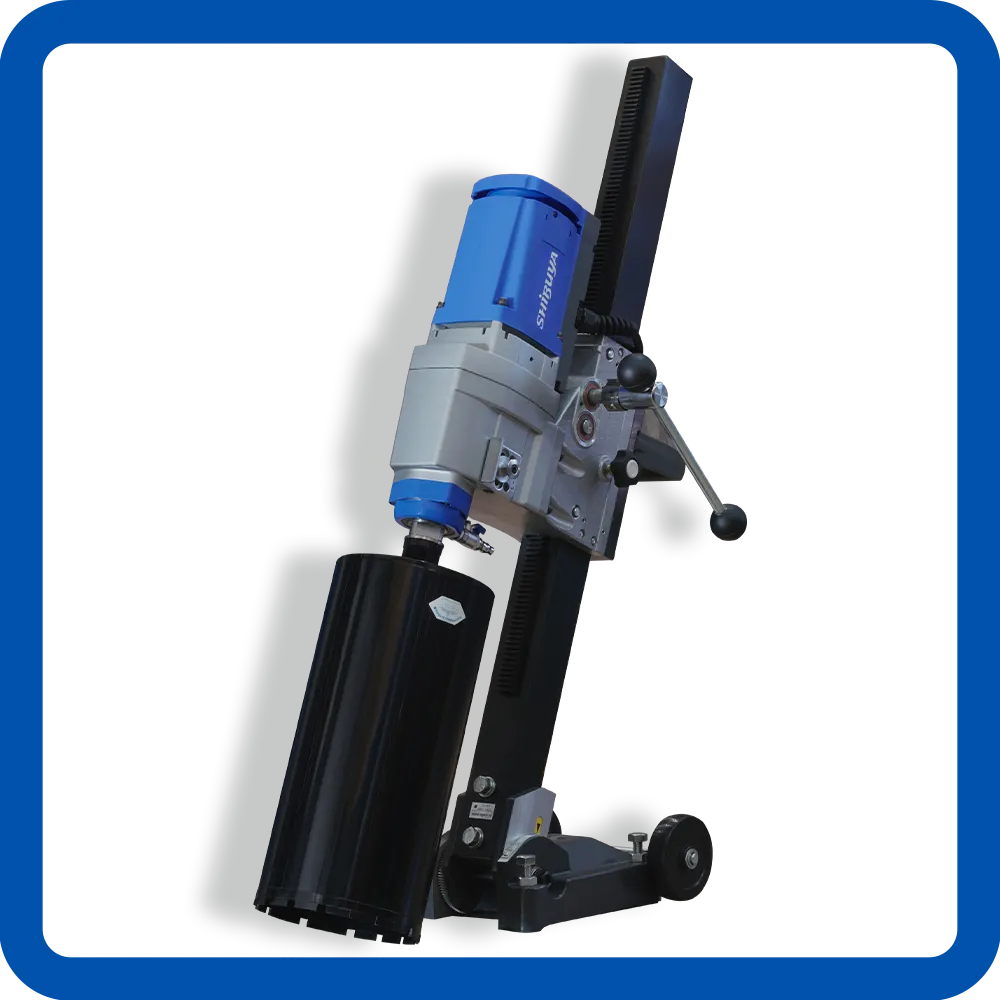

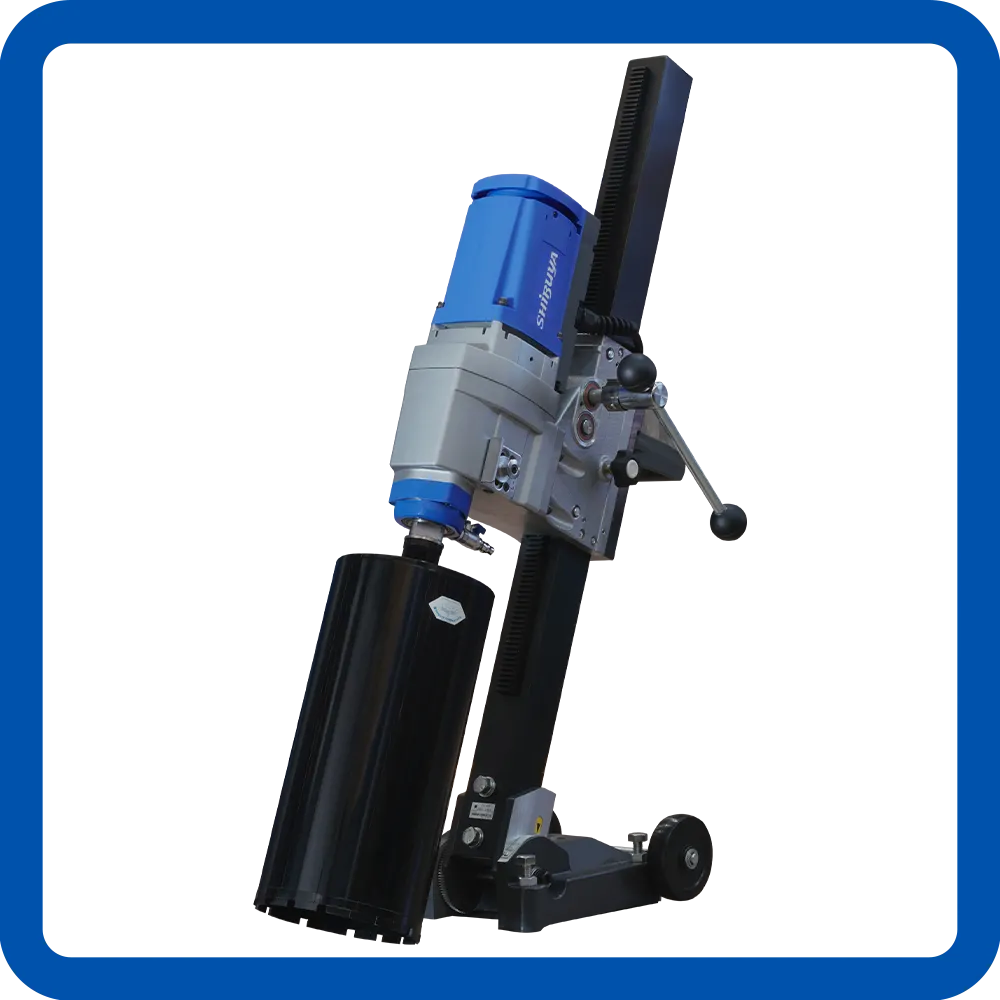

Shibuya TS405 H2231 Diamond Core Drill with SWIVEL BASEThe SHIBUYA TS-405 H2231 is a professional heavy-duty diamond core drilling machine designed for demanding concrete coring applications up to 400 mm (16") diameter. Built with Japanese engineering precision, the TS-405 combines powerful drilling performance, excellent stability, and high durability for contractors who require reliable operation on construction sites.Equipped with the H2231 high-power motor and AB61 swivel base system, the machine offers flexible angle drilling capability, smoother operation, and improved working efficiency for large diameter coring jobs. The strong 60 mm square column and rigid drill stand construction provide excellent stability during heavy-load drilling, helping reduce vibration and improve core bit life.The swivel base design allows the drill stand to tilt easily, making angle drilling and positioning more convenient during wall, floor, and utility coring applications. The machine is suitable for continuous professional use in reinforced concrete, civil engineering, infrastructure, and industrial projects.
Key Features
- Heavy-duty diamond core drill system designed for professional concrete coring applications up to 400 mm (16") diameter.
- High-performance H2231 motor delivers strong drilling power for reinforced concrete and large diameter core drilling works.
- Three-speed gearbox system allows users to select the most suitable drilling speed according to core bit size and concrete condition.
- AB61 swivel base provides flexible angle adjustment for inclined drilling applications and easier positioning at job sites.
- Strong 60 mm square steel column ensures excellent rigidity and drilling stability during heavy-load operation.
- Multi-position feed handle allows both left-hand and right-hand operation for improved user convenience.
- Built-in motor overload protection helps protect the motor during demanding drilling conditions.
- Portable Residual Current Device (P.R.C.D.) enhances operator safety by automatically shutting off electricity in the event of leakage.
- Durable carriage and stand construction reduce vibration and improve drilling accuracy.
- Multi-position water swivel inlet provides convenient water hose connection during operation.
- Compatible with A-Rod spindle thread core bits commonly used in professional concrete coring industries.
- Long drilling stroke allows deep hole coring applications with improved working efficiency.
- Optional swivel base design improves flexibility for wall, floor, and angled drilling operations.
- Designed and manufactured in Japan for high durability, reliability, and long service life.
Ideal Applications
- Reinforced concrete core drilling
- Concrete wall opening works
- Floor slab coring
- Plumbing and pipe installation
- Electrical cable routing
- Air-conditioning and HVAC openings
- Infrastructure and bridge construction
- Road and highway construction projects
- Utility and maintenance works
- Industrial plant construction
- Anchor hole drilling
- Stitch drilling applications
- Angle drilling applications using swivel base system
- Large diameter coring for mechanical and engineering installations
- Professional continuous-use concrete coring operations
Why Contractors Choose TS405 H2231
- Ideal for contractors requiring flexible angled and inclined coring applications.
- AB61 swivel base allows precise angle adjustment for wall, floor, and special drilling positions.
- Powerful H2231 motor delivers reliable performance in reinforced concrete and large-diameter coring projects.
- Three-speed gearbox optimizes drilling efficiency across different bit sizes and materials.
- Strong 60 mm square column stand provides exceptional stability and drilling accuracy.
- Long drilling stroke enables deeper coring with improved productivity.
- Built-in overload protection and P.R.C.D. safety system help reduce downtime and enhance operator safety.
- Japanese-engineered quality ensures durability, reliability, and long service life.
- Suitable for demanding infrastructure, industrial, commercial, and heavy construction projects.
- Designed for professional contractors who require maximum versatility, precision, and performance on site.
Recommended Usage
- Professional Concrete Coring Contractors
- Infrastructure and Civil Engineering Contractors
- Mechanical & Electrical (M&E) Installation Contractors
- Plumbing and HVAC Contractors
- Utility and Maintenance Service Providers
- Bridge and Highway Construction Companies
- Industrial Plant Construction Contractors
- Large Commercial Building Projects
- Contractors Requiring Angled or Inclined Coring Applications
- High-Volume Concrete Coring Operations
Product Specification
| Model | TS405 |
|---|---|
| Motor Model | H2231 |
| Rated Input | 3450W |
| Voltage | 220-240V |
| Gear Speed System | 3 |
| Spindle Revolution at No Load ( RPM ) | 350 I 800 I 1600 |
| Maximum Applicable Core Bit Diameter | 400mm |
| Spindle Thread | A-Rod |
| Column Height | 1060mm |
| Base Size | 186 x 250mm |
| Available Stroke | 655mm |
| Weight excl. Plug & Cord | H2231 + Carriage Block : 17.8kg I Drill Stand : 14.8kg |
Optional Parts

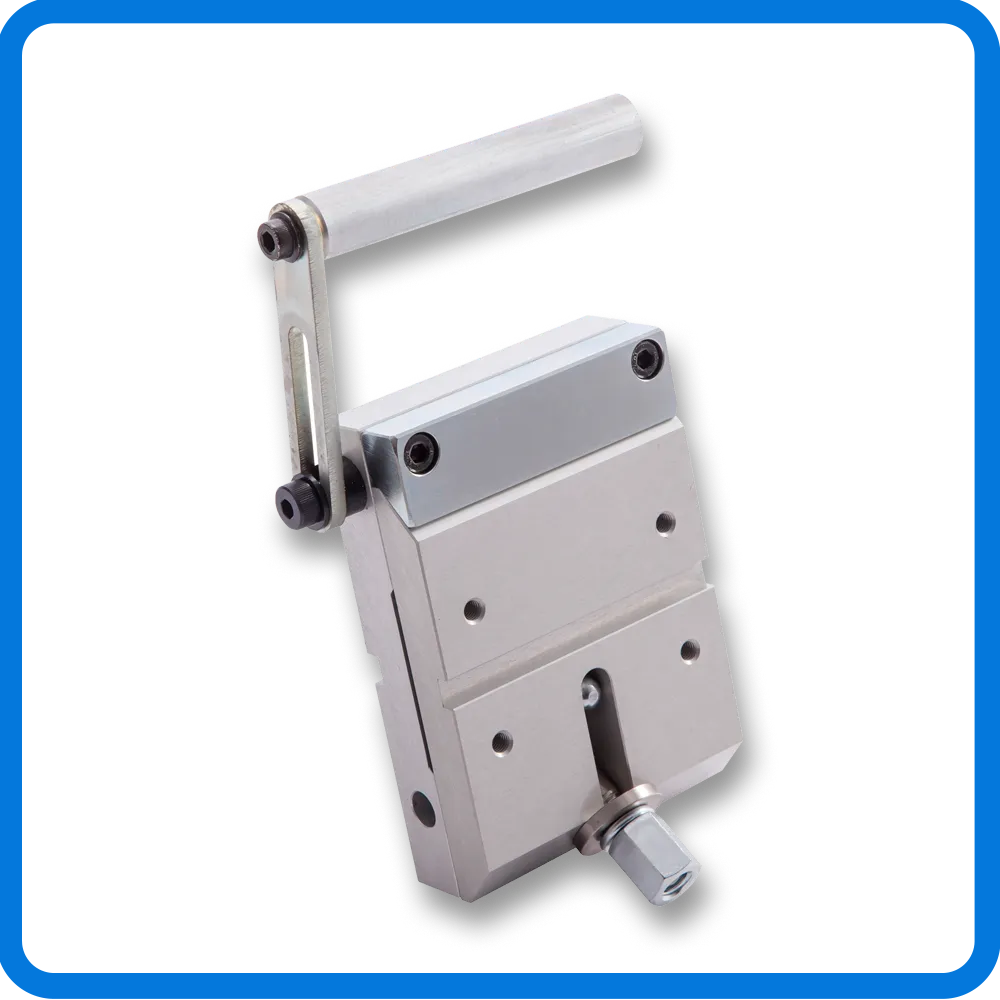

QUICK RELEASE SPACER
Quick release spacer designed for easier motor removal and increased working clearance during large diameter core drilling applications.
