TS405
HEAVY DUTY CORING PERFORMANCE

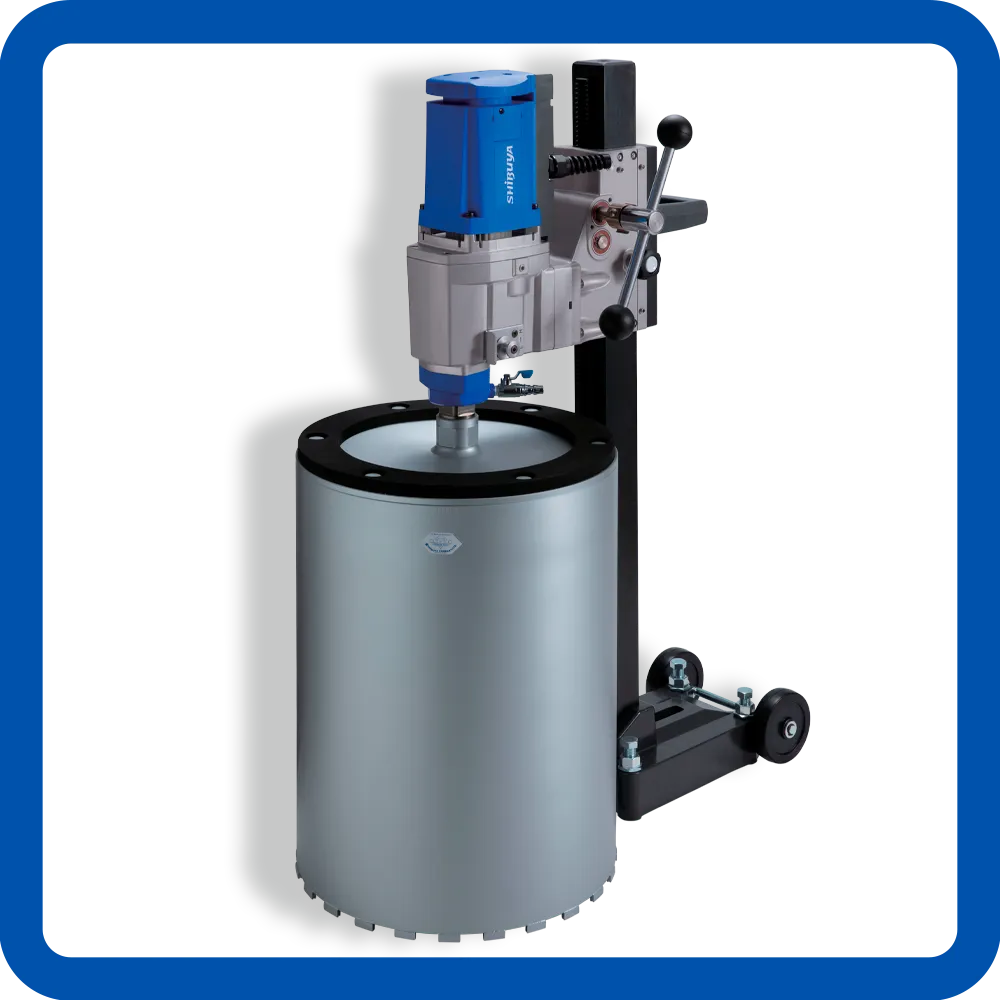

Shibuya TS405 H2231 Diamond Core Drill. The SHIBUYA TS405 H2231 Diamond Core Drill is a heavy-duty coring system designed for large-diameter concrete drilling applications. Equipped with a powerful motor, 3-speed gearbox, and robust drill stand, it delivers exceptional drilling performance, stability, and reliability for professional contractors working on demanding construction and infrastructure projects.
Key Features
- Heavy-duty professional diamond core drill system designed for large diameter concrete coring applications up to 400 mm (16") with 30 mm spacer.
- Powerful H2231 motor with 3-speed gearbox for efficient drilling performance in reinforced concrete and hard construction materials.
- Built-in motor overload protection system helps improve machine safety and durability during demanding drilling operations.
- Portable Residual Current Device (P.R.C.D.) automatically shuts off electricity in the event of electric leakage for safer operation.
- Multi-position water swivel inlet provides flexible water supply connection during coring works.
- Right and left-hand feed handle positions for improved operating convenience on different jobsite conditions.
- Strong and stable TS-405 drill stand with 60 mm square column design for excellent drilling accuracy and stability.
- Long drilling stroke allows deep hole coring applications for construction and industrial projects.
- Compatible with AB61 swivel base option for angled or flexible drilling applications.
- High-quality Japanese engineering designed for professional contractors requiring precision, reliability, and long service life.

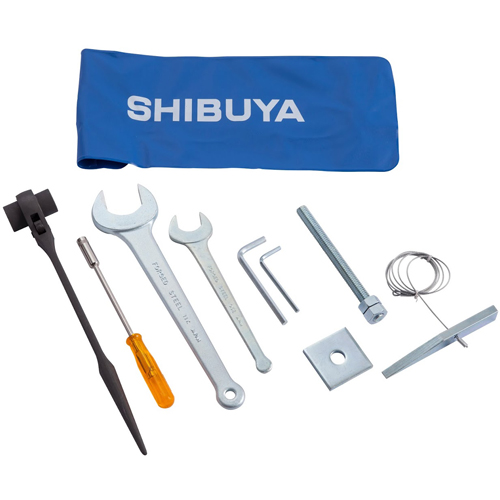

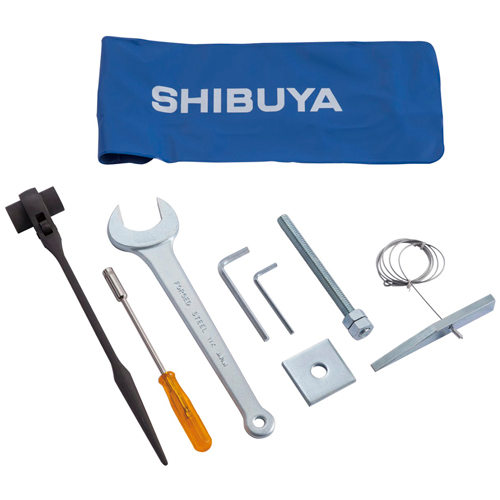

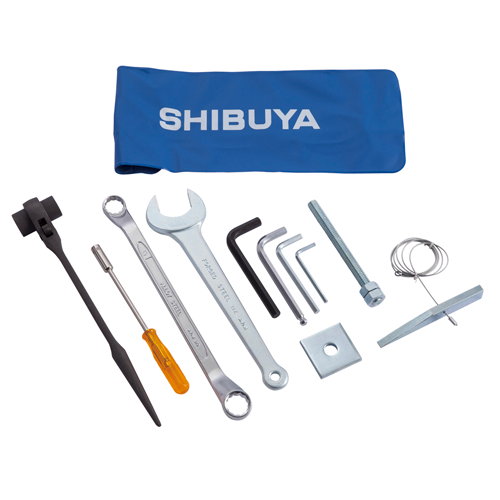

- Tool kit including wrenches and Allen keys supplied for maintenance and operation convenience.
Ideal Applications
- * Large-Diameter Concrete Coring
- * Reinforced Concrete Drilling
- * Deep Coring Applications
- * Plumbing and Pipe Penetrations
- * Electrical and Cable Openings
- * Mechanical and HVAC Installations
- * Infrastructure and Civil Engineering Projects
- * Commercial and Industrial Construction Works
- * Bridge, Tunnel and Utility Projects
- * Concrete Wall and Floor Coring Applications
Why Contractors Choose TS405
- The SHIBUYA TS405 H2231 is the preferred choice for professional contractors handling demanding concrete coring projects. Designed for large-diameter drilling applications, it delivers the power, stability, and reliability required to maximize productivity on site. Its robust construction and precision engineering help reduce downtime, improve drilling efficiency, and maintain consistent performance even under heavy workloads. Whether working on infrastructure, commercial buildings, industrial facilities, or major construction projects, the TS405 H2231 provides the confidence and durability contractors need to complete jobs faster and more profitably.
Recommended Usage
Contractors Handling Large-Diameter Coring Projects
Companies Performing Daily High-Volume Coring Works
Infrastructure and Transportation Projects
Industrial and Commercial Construction Contractors
Specialized Concrete Cutting and Coring Contractors
Projects Requiring Deep Coring Applications
Contractors Seeking Long-Term Reliability and Low Downtime
Heavy-Duty Professional Coring Operations
Product Specification
| Model | TS405FS | TS405AS | TS405FS |
|---|---|

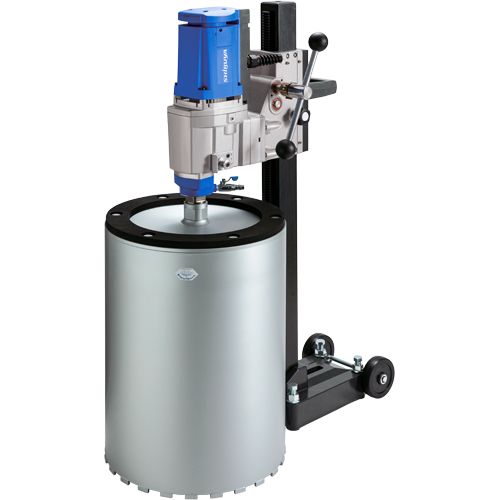

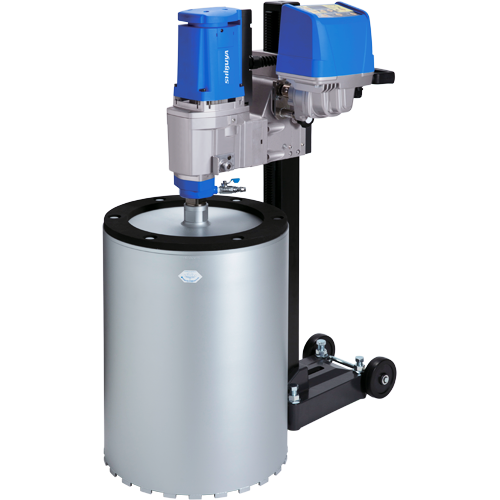

| Motor Model | H2221 | H2221 | H2231 |
| Power Rated (WATT) | 3,450 | 3,450 | 3,450 |
| No Load Speed (RPM) | 350 / 850 | 350 / 850 | 350 / 800 / 1600 |
| Rated Load Speed (RPM) | 190 / 460 | 190 / 460 | 200 / 500 / 950 |
| Preferred Core Bit Dia. (MM) | 100 - 400 | 100 - 400 | 25 - 400 |

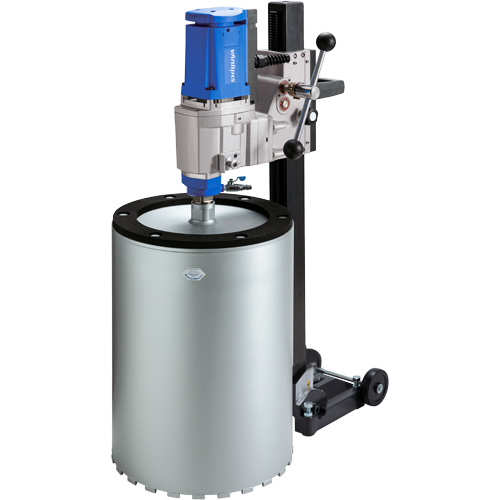

| Base Type | Fixed Anchor | Swivel Anchor (AB61) | Fixed Anchor |
| Base Size (MM) | 176 x 275 | 186 x 250 (AB61) | 176 x 275 |
| Column Height (MM) | 1003 | 1060 (AB61) | 1003 |
| Travel Length (MM) | 633 | 655 | 633 |
| Weight (KG) | 30.3 | 30.3 31.7 | 32.6 |
