TS255
HEAVY DUTY CORING PERFORMANCE

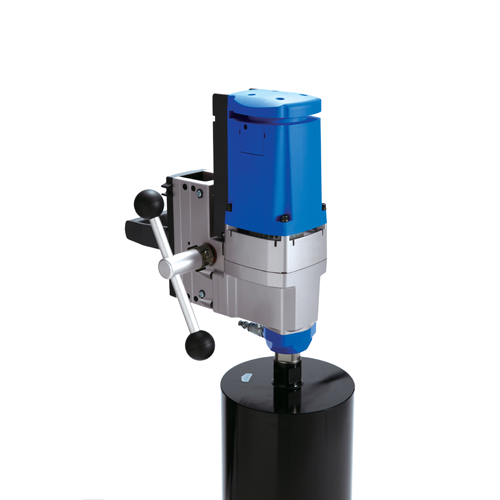

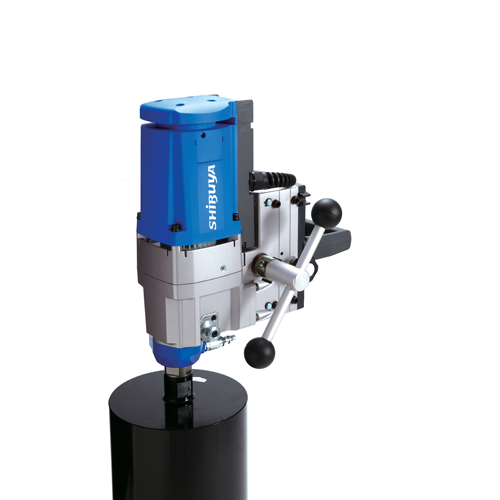

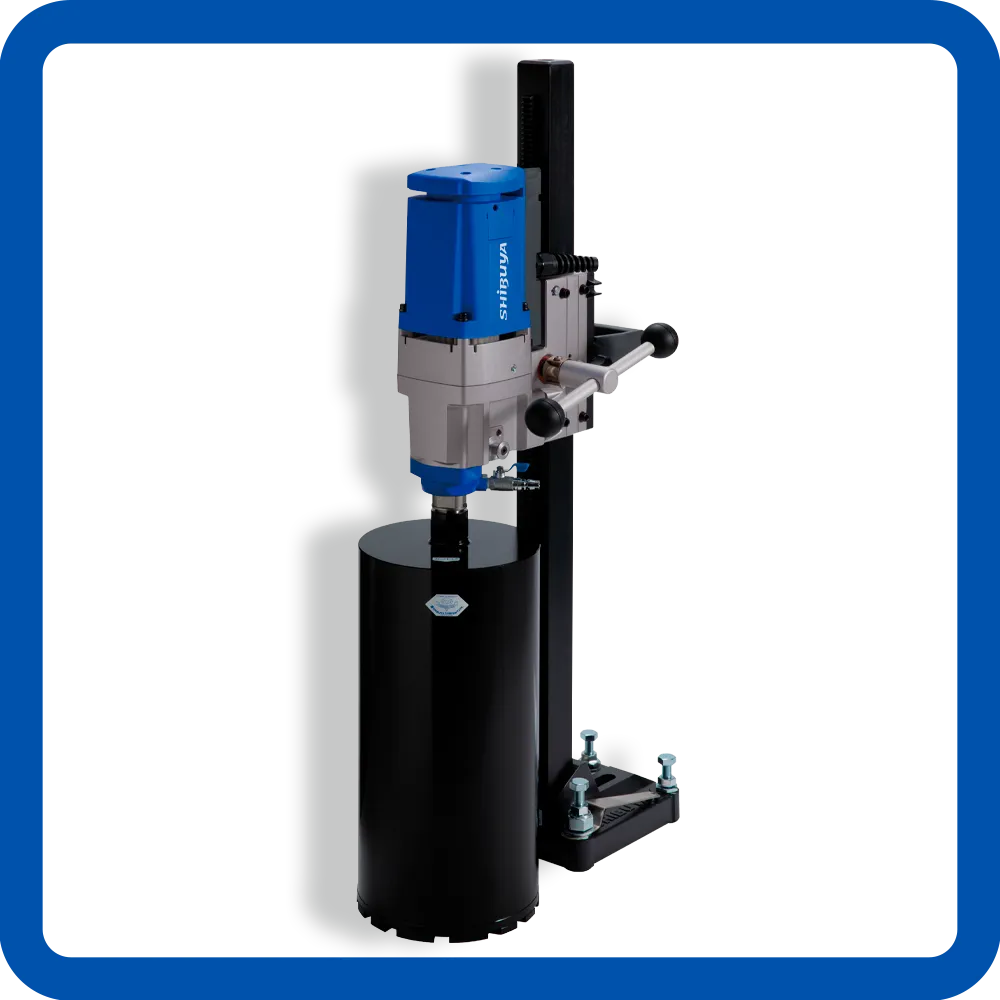

SHIBUYA TS-255 H2021 Diamond Core Drill â Features & ApplicationsThe SHIBUYA TS-255 H2021 is a professional diamond core drilling machine designed for medium to large diameter coring applications requiring powerful drilling performance, stability, and durability.Equipped with the high-power H2021 motor, the TS-255 delivers strong torque output and reliable drilling performance for reinforced concrete coring operations.
Key Features
- The two-speed gearbox design allows operators to select suitable drilling speeds based on different core bit diameters and working conditions.
- The TS-255 features a multi-position water swivel inlet for flexible hose positioning and improved convenience during drilling operations. Right and left feed handle positions provide better operating comfort and easier handling on site.
- The built-in overload protection switch helps improve operational safety by protecting the motor during demanding drilling applications. The P.R.C.D. (Portable Residual Current Device) safety system automatically shuts off electricity in the event of electric leakage for enhanced operator protection.

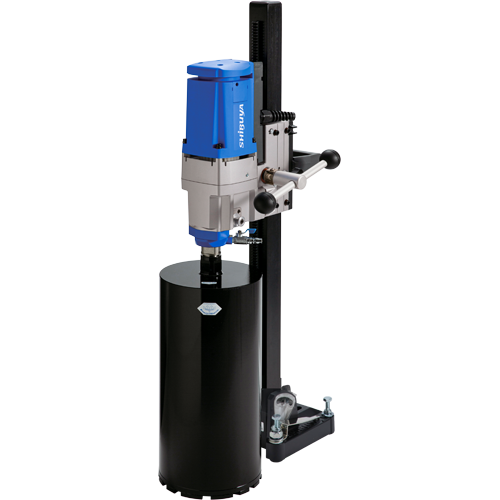

- The SHIBUYA TS-255 is available with optional AB52 swivel base stand configuration, allowing angled drilling applications and improved drilling flexibility on construction sites.
- With the optional 30 mm spacer, the maximum core bit capacity can be extended up to 250 mm (10"), making the TS-255 suitable for larger diameter coring requirements.
Ideal Applications
- The SHIBUYA TS-255 H2021 is ideal for:
- * reinforced concrete coring
- * large diameter core drilling
- * plumbing and M&E installation
- * infrastructure projects
- * road and bridge construction
- * utility installation works
- * deep concrete coring applications
- * professional contractor and industrial use
Why Contractors Choose TS255
- Manufactured with high-quality Japanese engineering standards, the SHIBUYA TS-255 H2021 delivers powerful drilling performance, reliable operation, and long-lasting durability for professional concrete coring applications.
Product Specification
| Model | TS255FS | TS255AS |
|---|---|
| Motor Model | H2021 | H2021 |
| Power Rated (WATT) | 3,450 | 3,450 |
| No Load Speed (RPM) | 550 / 1,200 | 550 / 1,200 |
| Rated Load Speed (RPM) | 300 / 730 | 300 / 730 |
| Preferred Core Bit Dia. (MM) | 60 - 250 | 60 - 250 |
| Base Type | Fixed Anchor | Swivel Anchor (AB52) |
| Base Size (MM) | 158 x 217 | 146 x 205 |
| Column Height (MM) | 803 | 1011 |
| Travel Length (MM) | 493 | 680 |
| Weight (KG) | 18.8 | 19.4 |
