TS-165 H1521
Compact Swivel Core Drill

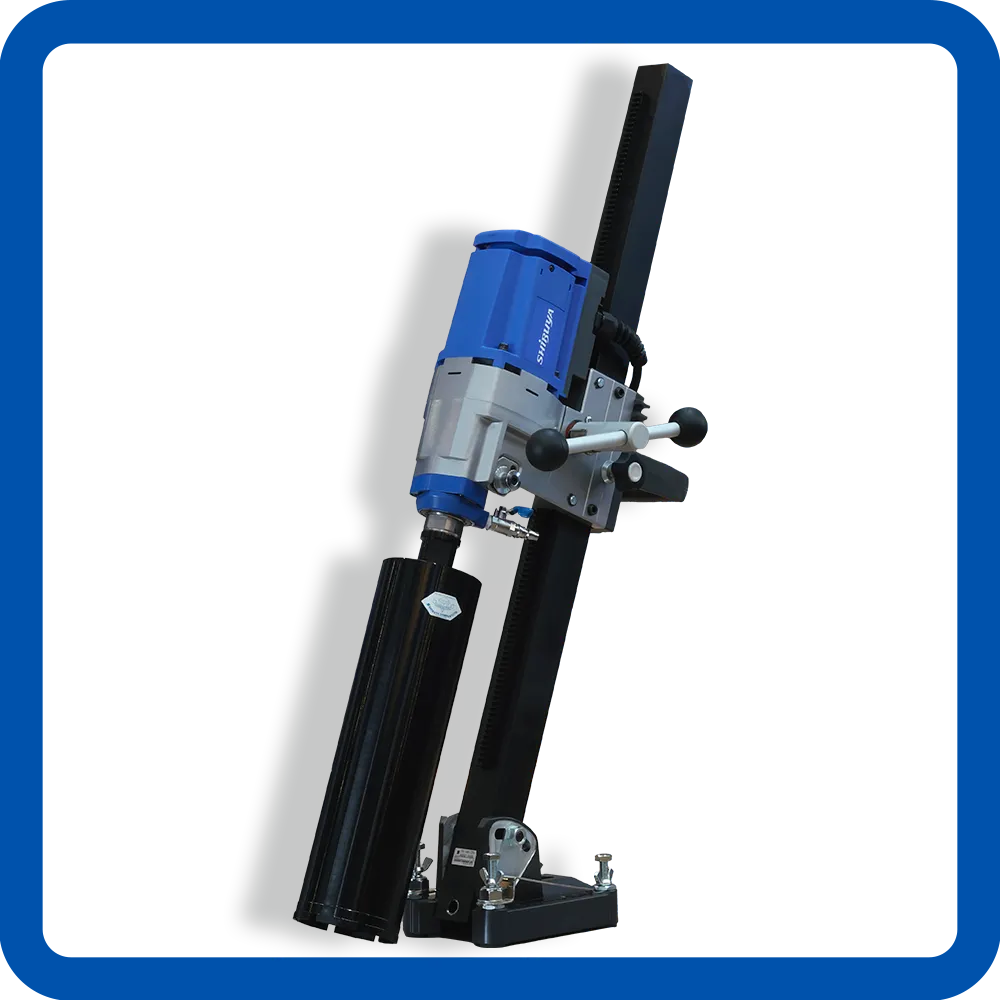

SHIBUYA TS-165 H1521 Diamond Core Drill with AB52 Swivel Base Stand. The SHIBUYA TS-165 H1521 Diamond Core Drill with AB52 Swivel Base Stand is a compact and lightweight coring system designed for precise concrete drilling applications. Featuring a swivel base stand for flexible positioning and accurate drilling alignment, it delivers stable performance, easy operation, and reliable results for professional contractors and construction projects.
Key Features
- Compact and lightweight diamond core drill system for small to medium-sized coring jobs.
- Equipped with AB52 swivel base stand for angled and flexible drilling positions.
- Two-speed motor design for better control on different core bit diameters.
- Multi-position water swivel inlet for convenient hose positioning.
- Right and left-hand feed handle positions for operator comfort.
- Built-in ON/OFF switch with motor overload protection.
- Available with:
- H1521 motor — standard coring applications
- H1522 motor — optimized for smaller diameter drilling with higher RPM
- Maximum core bit capacity up to 180 mm (7").
- Portable Residual Current Device (P.R.C.D.) protection for electrical safety (220–240V only).
- Includes water collection ring for cleaner drilling operation.
- Strong and durable 50 mm square column stand construction.

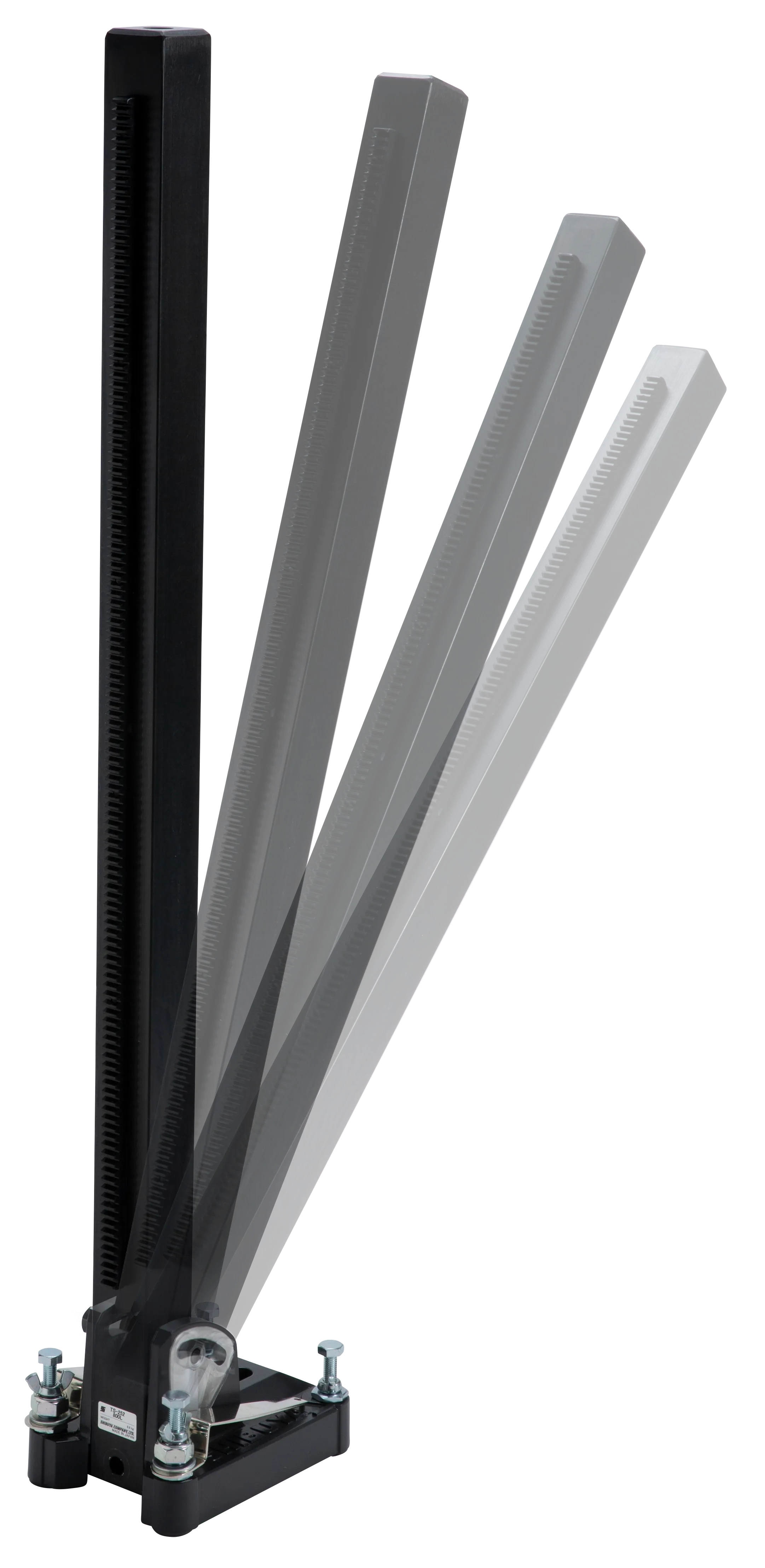

- Swivel stand allows improved drilling flexibility in confined or difficult working positions.
- Smooth feeding mechanism for stable and accurate coring performance.
Ideal Applications
- reinforced concrete
- concrete wall drilling
- plumbing openings
- air-conditioning installation
- electrical conduit openings
- general construction coring works
Why Contractors Choose TS-165 H1521
- The SHIBUYA TS-165 H1521 is a compact and lightweight diamond core drilling system designed for professional concrete coring applications. Equipped with the AB52 swivel base stand, it allows flexible positioning and precise drilling alignment in confined working areas. Its robust construction, smooth operation, and reliable performance make it an ideal solution for contractors requiring accuracy, mobility, and productivity on site.
Product Specification
| Model | TS-165 |
|---|---|
| Motor Model | 1521 |
| Rated Input | 2100W |
| Voltage | 220-240V |
| Speed Gear System | 2 |
| Spindle Revolution at No Load ( RPM ) | 850 / 1300 |
| Max. Applicable Core Bit Diameter | 7" / 180mm ( Extendable to 8" / 200mm ) |
| Spindle Thread | A-Rod |
| Column Height | 1011mm |
| Base Size | 146 x 205mm |
| Available Stroke | 715mm |
| Weight excl. Plug and Cable | 16.7kg |
Optional Parts

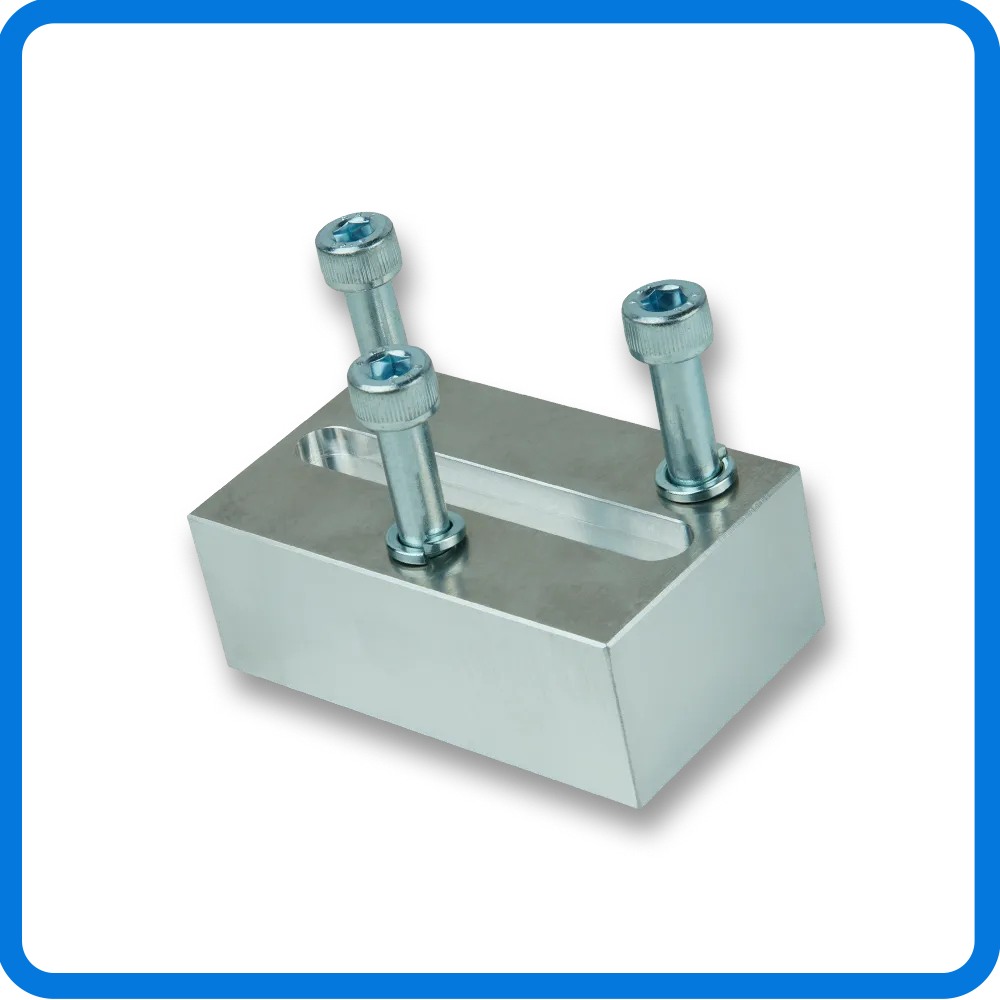

30mm Spacer
The SHIBUYA 30 mm Spacer for TS-165 is a precision accessory designed to increase the machine clearance and extend the maximum core bit capacity from 180 mm (7") to 200 mm (8"). Ideal for larger diameter concrete coring applications while maintaining stable and accurate drilling performance.
