TS165FSC
Portable Professional Core Drill

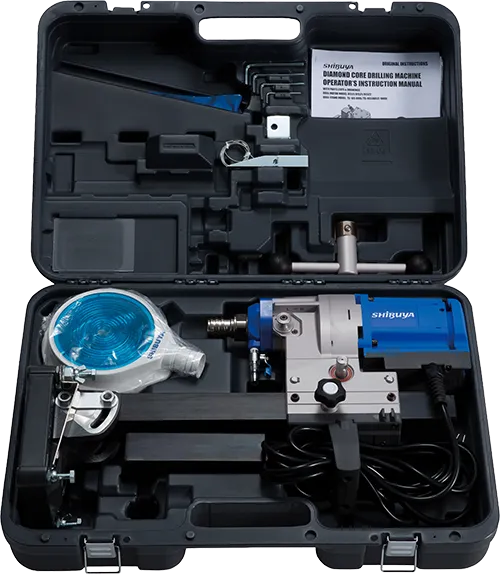

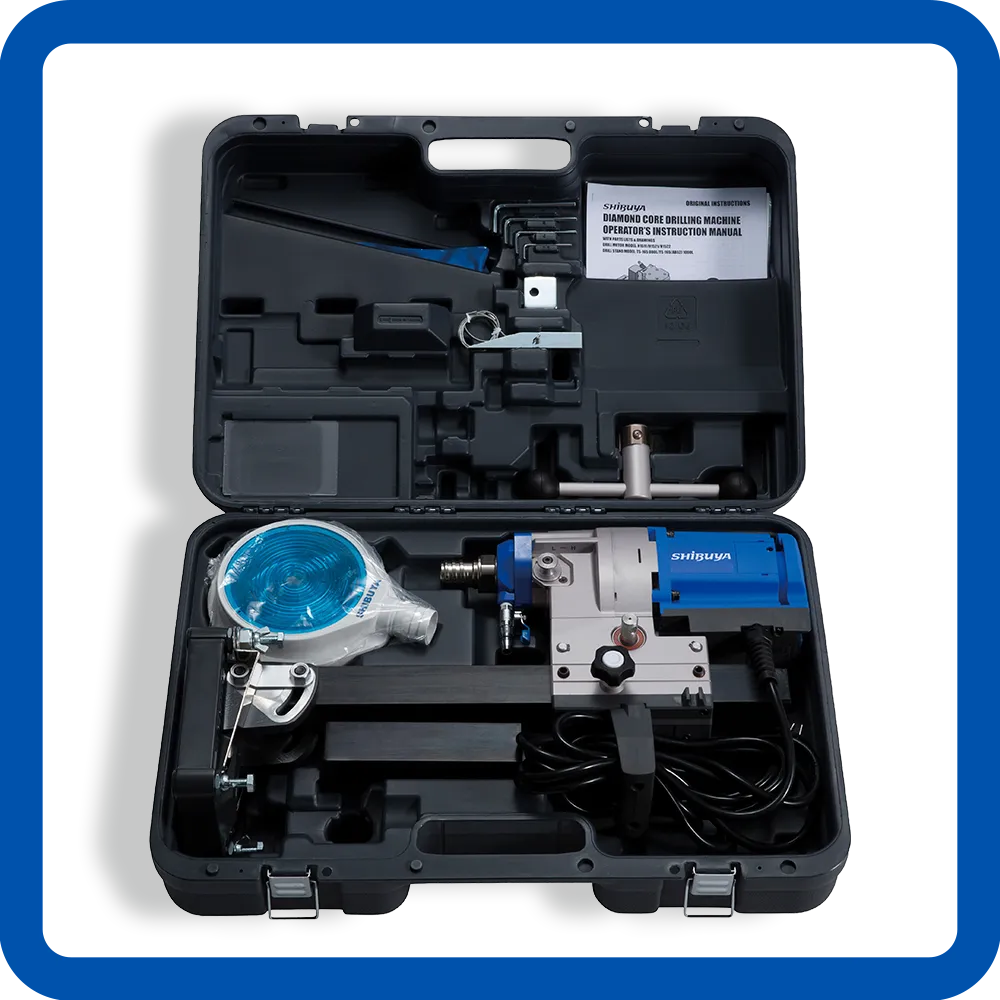

SHIBUYA TS-165 Case Type FeaturesThe SHIBUYA TS-165 Case Type is a compact and portable diamond core drilling system specially designed for contractors who require easy transportation, organized storage, and reliable performance on small to medium-size coring jobs.
Key Features
- Compact “Case Version” design for easier transportation and storage.
- Portable carry case available as option to protect the machine and accessories during transport.
- Lightweight and site-friendly setup suitable for mobile contractors.
- Two-speed powerful motor for both small and medium diameter coring applications.
- Available with two motor options:
- H1521 (Normal Speed)
- Built-in overload protection switch to help protect the motor during heavy operation.
- P.R.C.D. (Portable Residual Current Device) safety protection automatically cuts power during electrical leakage.
- Multi-position water swivel inlet for convenient hose connection from different directions.
- Right and left feed handle positions for better operator flexibility.
- Includes water collection ring for cleaner and safer coring works.
- Strong 50 mm square column design provides excellent drilling stability.
- Compact Case Version Column:
- 793 mm (31") column height
- 535 mm (21") stroke
- Extension column option allows deeper drilling applications.
- Tool kit included with wrenches and Allen keys.
- Maximum core bit capacity up to 180 mm (7").
Ideal Applications
- Air-conditioning installation
- Plumbing works
- Electrical conduit holes
- Small to medium concrete coring projects
- Indoor renovation works
- Contractors requiring frequent machine transportation
Why Contractors Choose TS165FSC
- Easier to carry into tight working areas.
- Better protection during transportation.
- Organized storage reduces missing accessories and tools.
- Compact size fits well in service vehicles and vans.
- Professional Japanese-made drilling performance with excellent reliability.
Recommended Usage
The TS-165 Case Type performs best when paired with high-quality diamond core bits such as SHIBUYA or COOLMAN core bits to ensure:Faster drilling speedBetter drilling stabilityLonger machine lifespanReduced motor stress and vibrationImproved safety during operation
Product Specification
| Model | TS165 with Case Type |
|---|---|
| Motor | H1521 |
| Gear Speed | 2 |
| Rated Input ( Power ) | 2100w |
| Voltage | 220-240V |
| RPM | 850 / 1300 |
| Maximum Applicable Core Bit Diameter | 7" / 180mm ( Extendable to 8" / 200mm with 30mm Spacer Optional ) |
| Height | 793mm |
| Base Size | 146 x 205mm |
| Spindle Thread | A-Rod / UNC 1-1/4" ( Pre-order ) |
| Weight exc. P.R.C.D plug and cable | 16.2kg |
Optional Parts

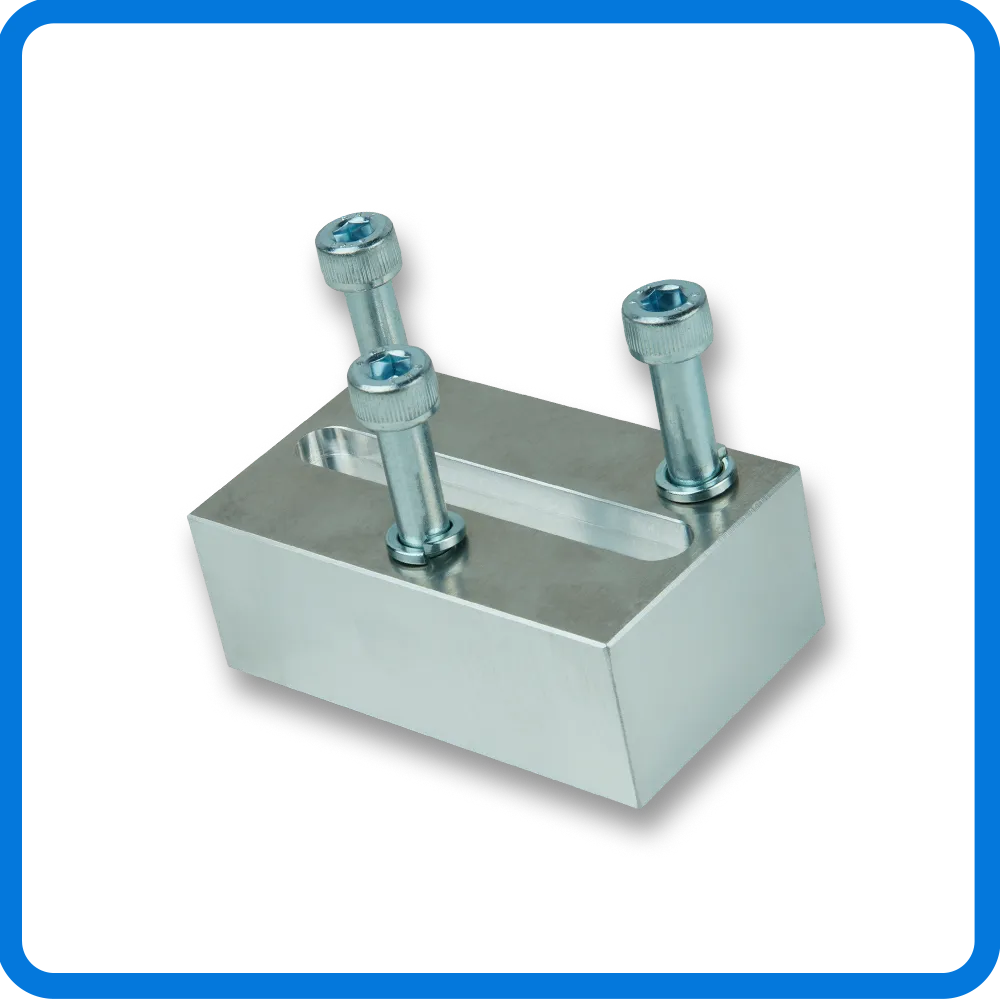

SPACER 30mm
The Shibuya 30mm spacer is designed specifically for the TS165 core drill to improve mounting clearance and stability. The spacer is installed between the motor and the carriage block, increasing the distance between the motor and the drill stand This added space allows 8"/200 mm diamond core bits to be mounted more securely and safely, reducing interference and improving drilling stability It is an essential accessory for professional coring applications that require larger diameter core bits with better safety and control.
