SSS
PROFESSIONAL DEEP CORING CORE BIT

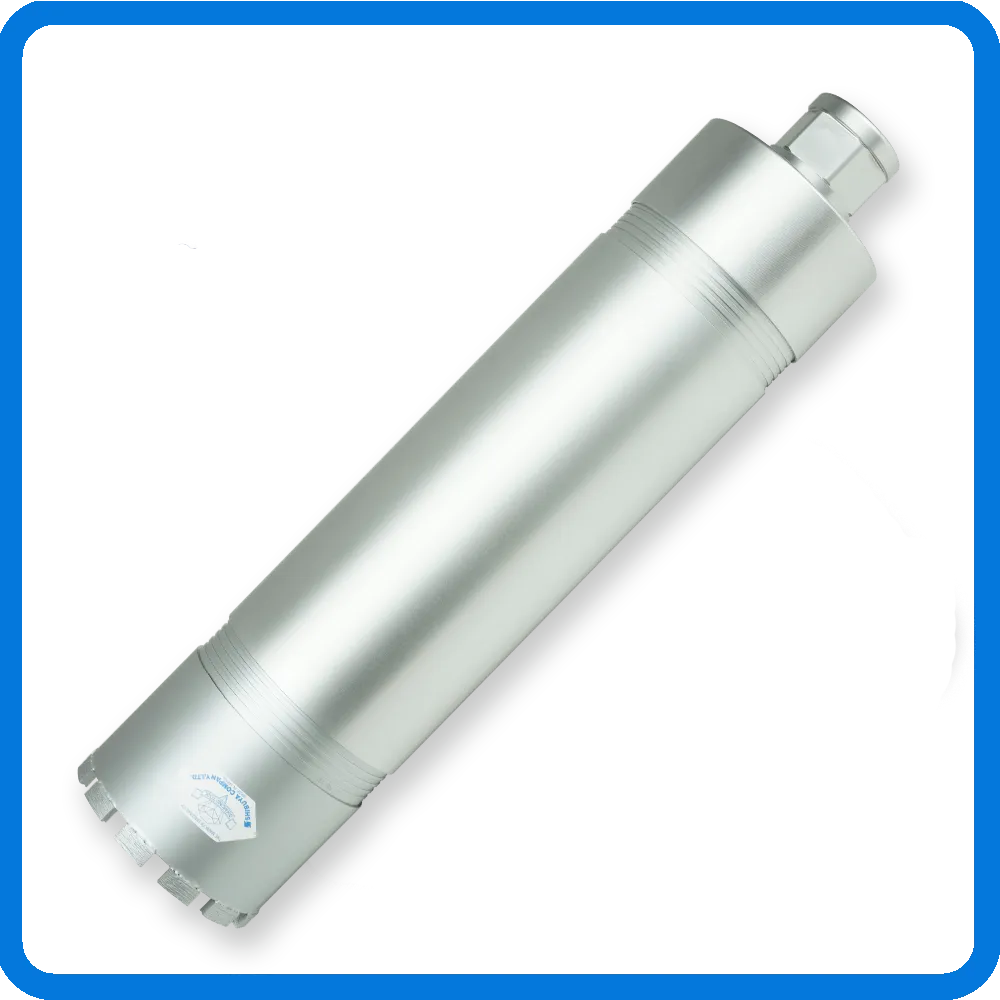

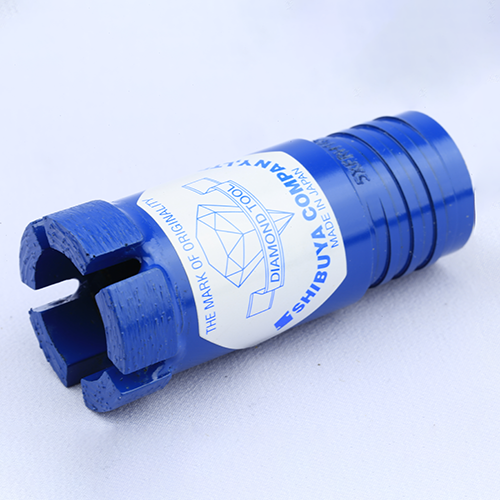

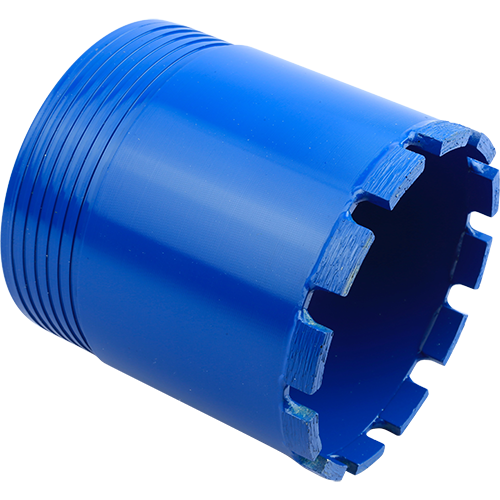

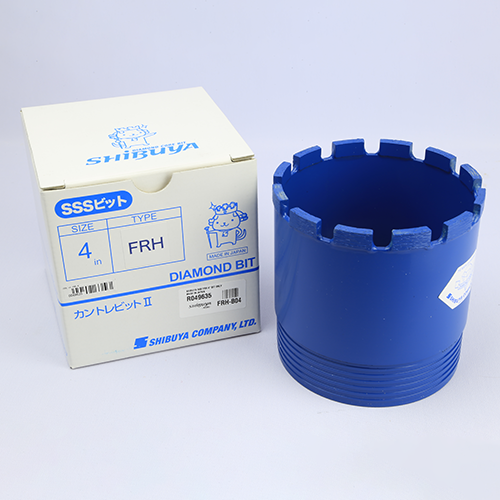

SHIBUYA SSS Series 3-Piece Diamond Core Bit

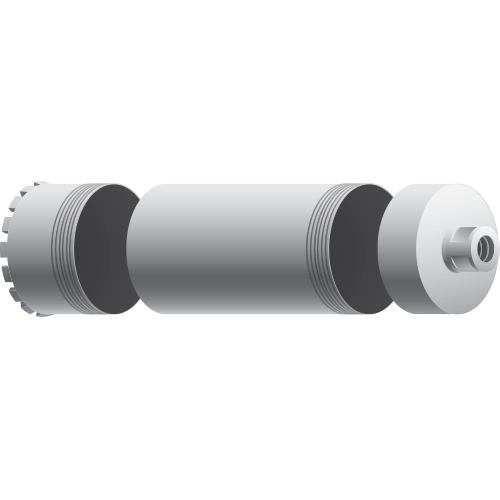

The SHIBUYA SSS Series is a professional 3-piece diamond core bit system designed for deep concrete coring applications. The system consists of a diamond core bit, extension tube, and adaptor, allowing contractors to achieve greater drilling depths while maintaining excellent drilling stability and accuracy.
Manufactured in Japan, the SSS Series features interchangeable components that provide flexibility for different drilling requirements. Available with multiple segment bond options, users can select the most suitable specification according to concrete hardness, aggregate conditions, and jobsite requirements.
With its modular design and durable construction, the SHIBUYA SSS Series is ideal for deep penetration coring where standard one-piece core bits cannot achieve the required drilling depth.
Key Features
- Professional 3-piece diamond core bit system

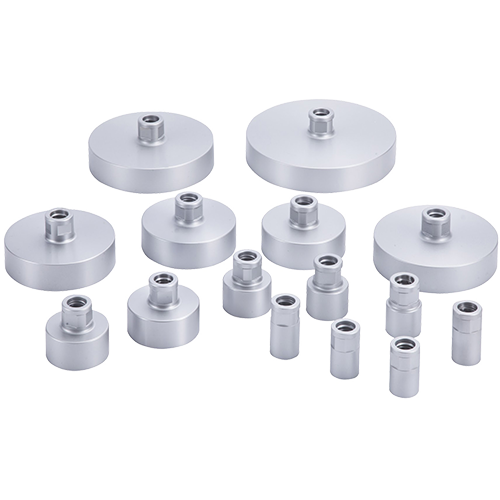

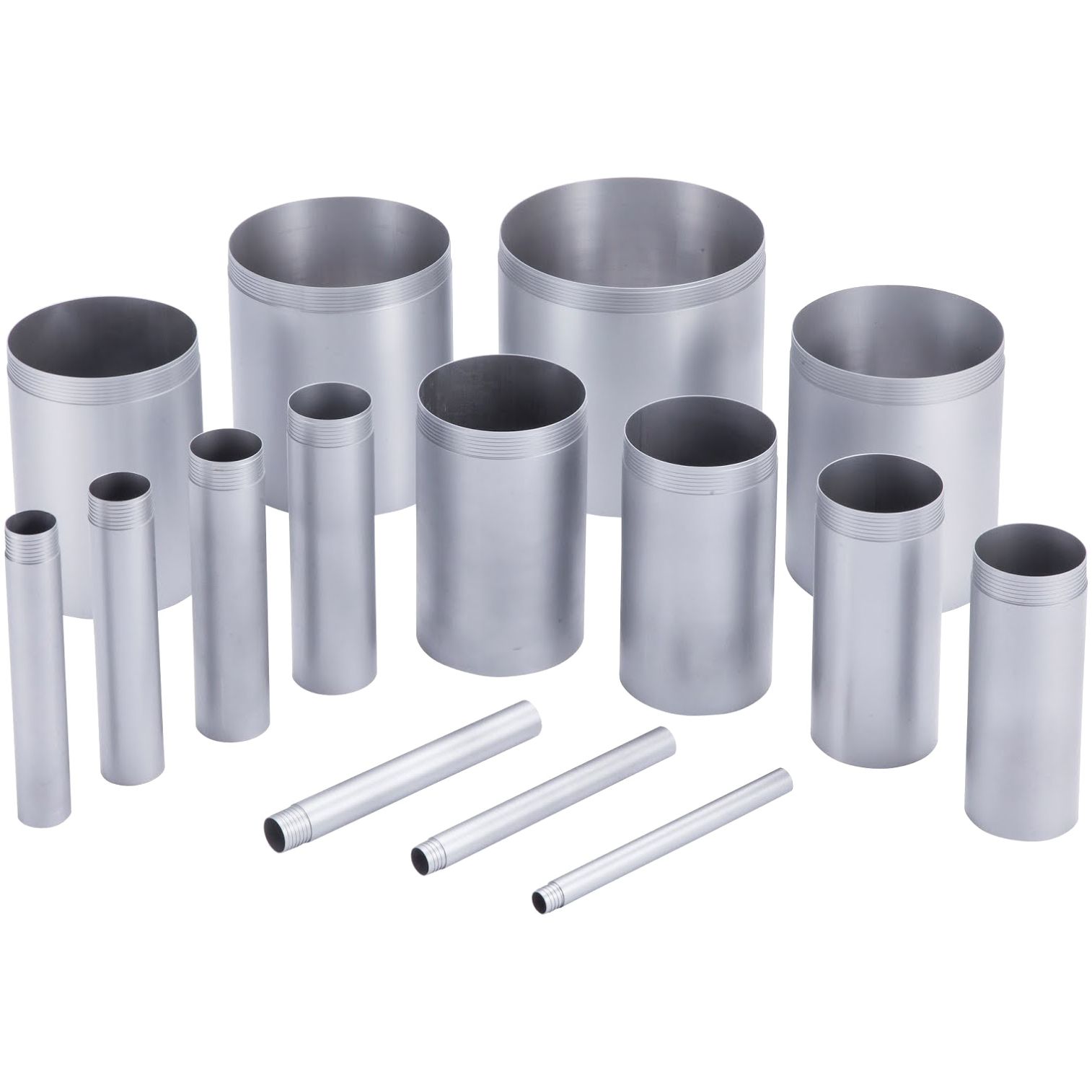

- Consists of bit, tube, and adaptor
- Designed for deep concrete coring applications

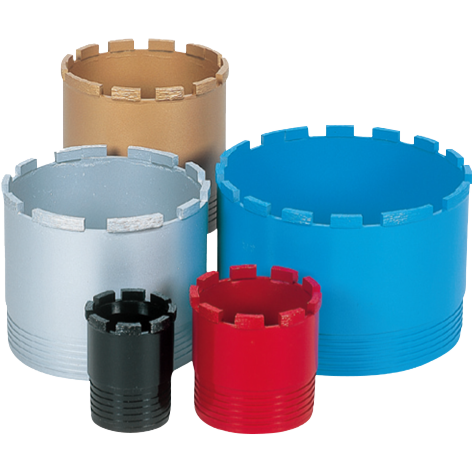

- Available with multiple segment bond specifications
- Modular construction for easy maintenance
- Replace individual components when required
- Excellent drilling stability and accuracy
- Suitable for extended drilling depths
- High-quality Japanese manufacturing
- Durable steel tube construction
- Smooth drilling performance
- Compatible with SHIBUYA core drilling systems
Ideal Applications
- High-rise building construction
- Bridge and infrastructure projects
- Power plant construction
- Water treatment facilities
- Industrial plant installations
- Tunnel and underground works
- Thick reinforced concrete structures
- Deep service penetration drilling
- Lift shaft and stairwell openings
- Large commercial and industrial developments
- Heavy-duty construction projects
- Projects requiring drilling depths beyond standard core bits
Why Contractors Choose SSS
- The SHIBUYA SSS Series offers a flexible and cost-effective solution for deep coring operations. Its 3-piece construction allows damaged components to be replaced individually, reducing operating costs and extending overall service life.
- The modular design also makes transportation, storage, and handling easier while providing the ability to achieve significantly deeper drilling depths compared to conventional core bits. Manufactured with Japanese precision and quality control, the SSS Series delivers reliable performance for demanding professional applications.
Recommended Usage
- Deep reinforced concrete coring
- Thick wall penetration drilling
- Floor slab coring applications
- Foundation coring works
- Infrastructure construction projects
- Utility installation drilling
- Mechanical and electrical service openings
- Large building construction projects
- Professional contractor applications
- Continuous deep drilling operations
Product Specification
| OUTER DIAMETER (INCH) | EFFECTIVE DRILLING DEPTH |
|---|---|
| 1 | 34 mm |
| 1-1/4 | 34 mm |
| 1-1/2 | 35 mm |
| 2 | 35 mm |
| 2-1/2 | 40 mm |
| 3 | 40 mm |
| 3-1/2 | 40 mm |
| 4 | 70 mm |
| 5 | 70 mm |
| 6 | 70 mm |
| 7 | 70 mm |
| 8 | 70 mm |
| 9 | 70 mm |
| 10 | 70 mm |
| 11 | 70 mm |
| 12 | 70 mm |
