HH1531
Professional Handheld Core Drill

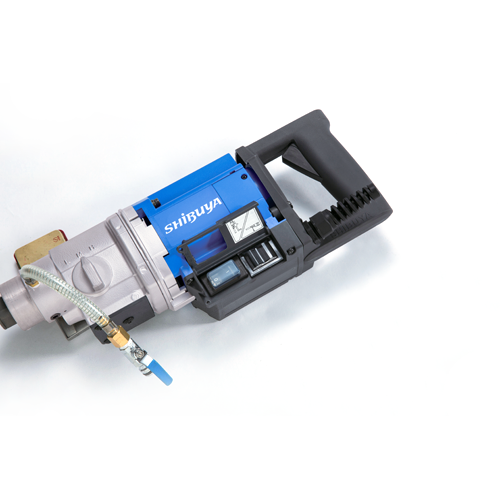

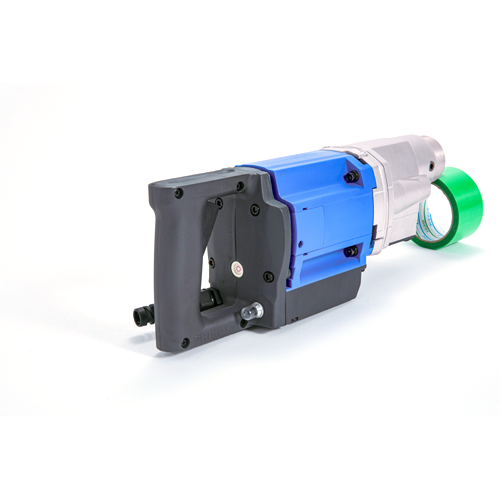

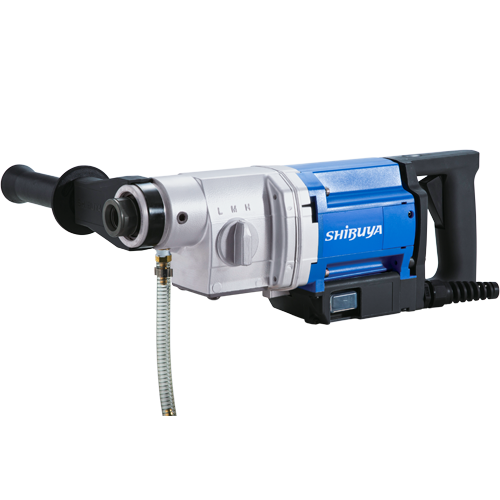

SHIBUYA HH1531 Hand Held Drill Motor. The SHIBUYA HH1531 is a lightweight and powerful hand held diamond core drill motor designed for fast, accurate, and portable drilling works. Built with Japanese engineering quality, the HH1531 is ideal for professional contractors requiring flexibility for both hand held and rig-mounted coring applications.
Key Features
- Compact three-speed gearbox with high, medium, and low speed settings for different drilling conditions.
- Lightweight body at only 6.9 kg (15 lbs.) for easier handling and reduced operator fatigue.
- Ergonomic D-style handle design for better control and comfortable operation.
- Multi-position front handle allows flexible handling angles during drilling.
- Variable speed trigger for smoother and more precise hand held drilling control.
- Built-in motor overload protection helps protect the motor during heavy operation.
- P.R.C.D. (Portable Residual Current Device) safety system automatically cuts off power during electrical leakage.

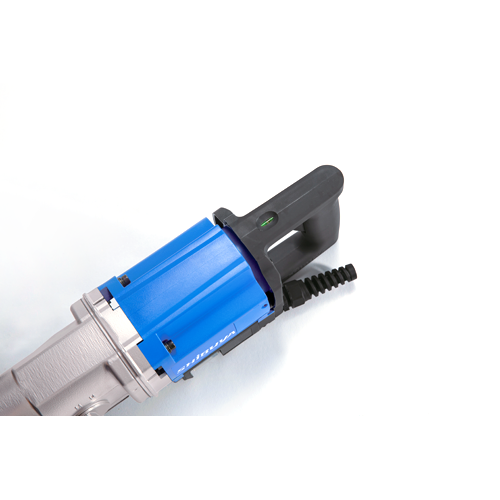

- Dual spirit levels help improve drilling accuracy and alignment.
- Switchable operation mode for both hand held and rig-mounted applications.

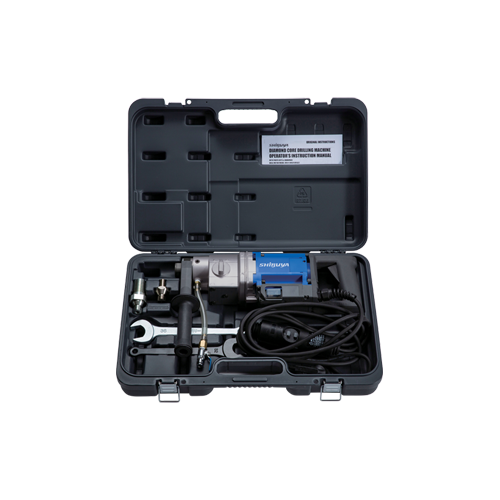

- Carry case and tool kit included for easy transportation and organized storage.
- Optional spindle adaptor available for different drilling applications.
- High-performance 1,600W motor delivers strong drilling power for concrete coring works.
- Maximum hand held core bit capacity up to 60 mm (2.3").
- Rig-mounted drilling capacity up to 180 mm (7").
Ideal Applications
- Air-conditioning piping holes
- Electrical conduit installation
- Plumbing and sanitary works
- Anchor hole drilling
- Renovation and maintenance works
- Indoor coring applications
- Fast mobile coring jobs
Why Contractors Choose HH1531
- Portable and easy to carry to different job sites.
- Suitable for both hand held and rig-mounted drilling.
- Smooth drilling performance with strong motor power.
- Excellent balance between power and portability.
- Reliable Japanese-made quality for professional use.
- Compact design suitable for tight working environments.
Recommended Usage
- Faster drilling speed
- Better cutting stability
- Reduced vibration
- Longer core bit lifespan
- Lower motor stress and overheating risk
Product Specification
| Model | HH1531 |
|---|---|
| Motor Model | HH1531 |
| Power Rated (WATT) | 1,600 |
| No Load Speed (RPM) | 1,000 / 2,500 / 4,900 |
| Rated Load Speed (RPM) | 730 / 1,800 / 3,600 |
| Preferred Core Bit Dia. (MM) | 12 - 60 |
| Installation Type | Handheld |
| Weight (KG) | 6.9 |
Optional Parts

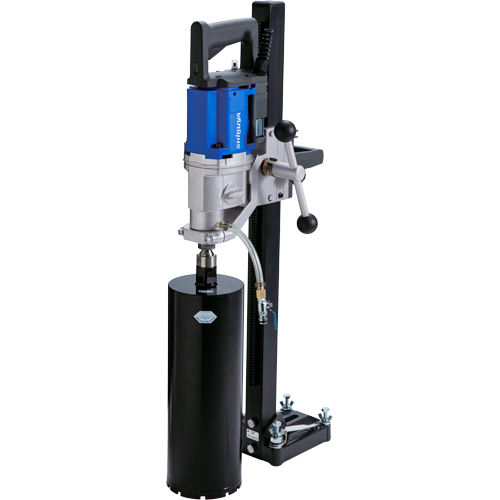

TS-165FS Drill Stand For HH1531
Fixed anchor drill stand for HH1531. Normal stand column: 803 mm with 545 mm stroke. Base size: 146 x 205 mm. Preferred core bit diameter: 12 - 180 mm. Weight: 8.5 kg excluding motor.

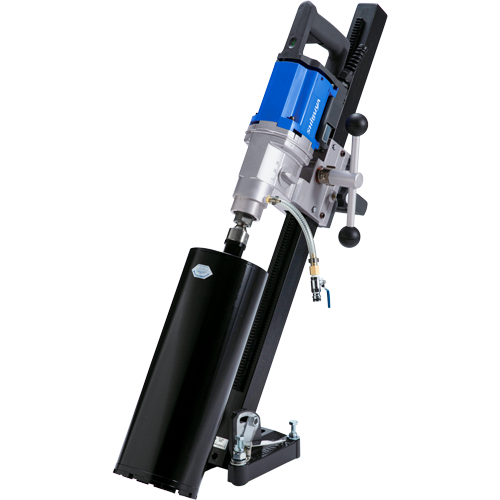

TS-165AS Drill Stand For HH1531 ( PRE-ORDER )
Swivel anchor AB52 drill stand for HH1531. AB52 column: 1011 mm with 715 mm stroke. 50 mm square column with 2-way mounting by 30 mm bolt-on spacer or clamp ring spacer. Weight: 10.8 kg excluding motor.

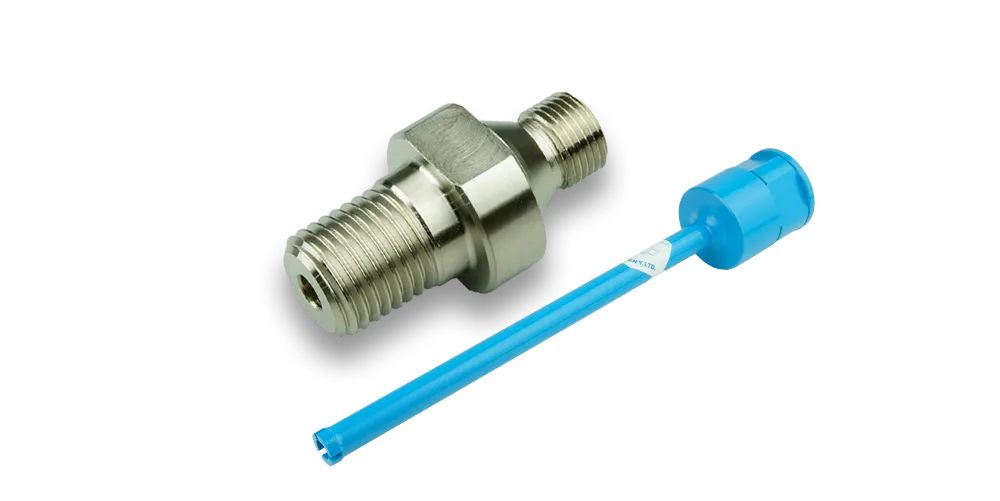

Spindle Adaptor G1/2-M27
Optional spindle adaptor G1/2-M27 for SHIBUYA HH1531 Handheld Drill Motor. Designed to connect with SHIBUYA SD1 ( Small Diameter ) Series Diamond Core Bits for stable, precise, and reliable handheld coring applications. High-quality steel construction ensures strong connection, reduced vibration, and smooth drilling performance.
