AVS-P
SMART FEED CONTROL

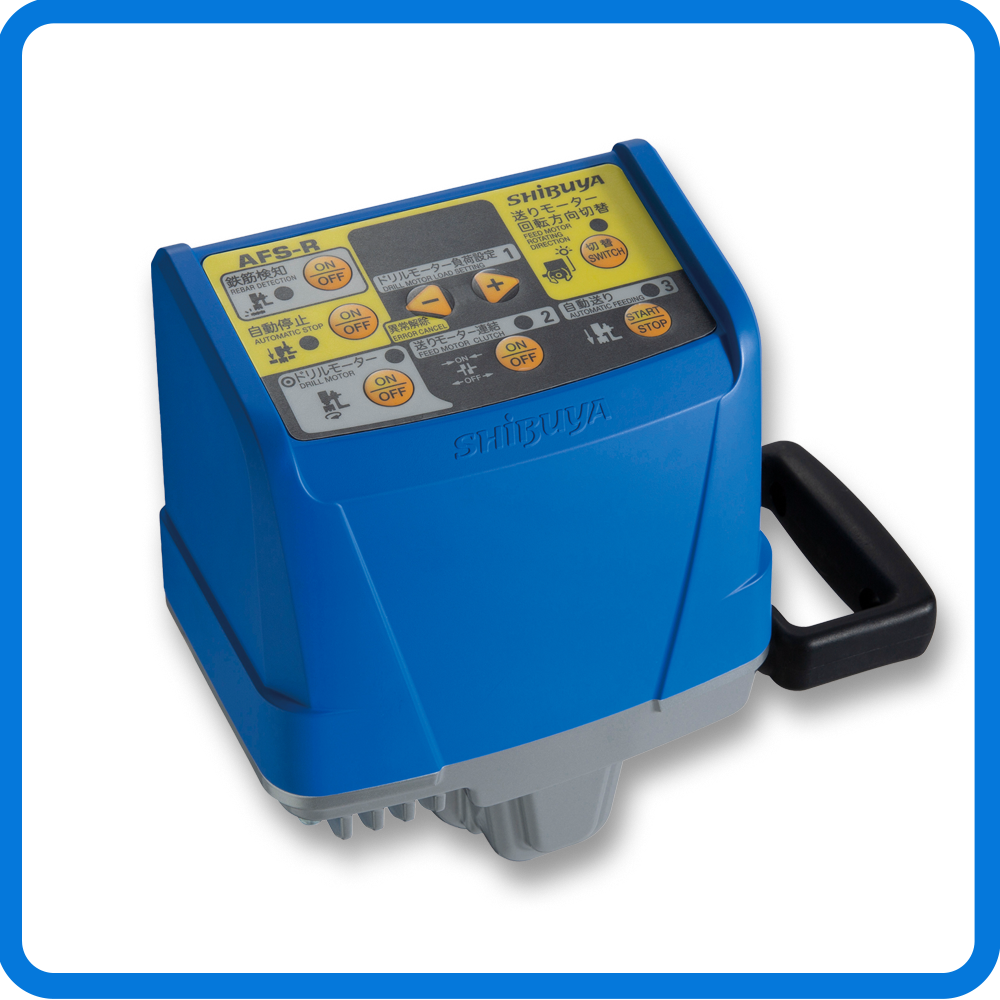

SHIBUYA Automatic Feeding System AFS-P is an advanced automatic feed control unit designed to improve drilling efficiency, consistency, and safety during concrete coring operations. The system automatically controls the feeding speed of the core drill motor according to drilling load, helping maintain optimal performance while reducing operator fatigue. Equipped with intelligent monitoring functions, the AFS-P enhances productivity and minimizes the risk of core bit damage during demanding drilling applications.
Key Features
- SHIBUYA Automatic Feeding System (AFS)
- Full-Auto Feed function automatically controls feeding from the initial drilling stage.
- Semi-Auto Feed mode allows manual starting before automatic feed operation.
- Real-time drilling depth display for accurate drilling control.
- Automatic feed speed adjustment based on motor load conditions.
- Rebar detection function helps reduce direct impact on reinforcement bars.
- Auto-stop function when core bit penetrates the material.
- Multiple automatic stop modes for improved operational control.
- Improves drilling consistency and reduces operator dependency.
- Enhances productivity for repetitive and large-volume coring projects.
- Reduces operator fatigue during long working hours.
- Compatible with selected SHIBUYA professional core drilling systems.
- Designed and manufactured in Japan for reliability and long service life.
Ideal Applications
- Large-scale concrete coring projects
- Repetitive hole drilling operations
- Infrastructure and railway construction works
- Bridge and highway projects
- Mechanical and electrical installation works
- Plumbing and pipe penetration drilling
- HVAC and air-conditioning openings
- Industrial plant construction
- Utility and maintenance projects
- Contractors performing high daily drilling volumes
- Deep hole concrete coring applications
- Professional concrete coring specialists
Why Contractors Choose AVS-P
- The SHIBUYA AFS-P helps contractors complete more holes with greater consistency while reducing labor dependency and operator fatigue. Its intelligent feed control system minimizes drilling errors, improves core bit protection, and maintains stable drilling performance even during demanding site conditions. For contractors handling high-volume coring projects, the AFS-P delivers higher productivity, better drilling accuracy, reduced downtime, and improved overall jobsite efficiency.
Recommended Usage
The SHIBUYA AFS-P helps contractors complete more holes with greater consistency while reducing labor dependency and operator fatigue. Its intelligent feed control system minimizes drilling errors, improves core bit protection, and maintains stable drilling performance even during demanding site conditions. For contractors handling high-volume coring projects, the AFS-P delivers higher productivity, better drilling accuracy, reduced downtime, and improved overall jobsite efficiency.
Product Specification
| Model | AFS-P |
|---|---|
| Voltage | 220 - 240V |
| Power Rated (WATT) | 40 |
| Dimension (MM) | 196(W) X 258(L) X 268(H) |
| Weight(KG) | 6.0 |
| Compatible Model | TS255 / TS405 / TS605 |
Optional Parts

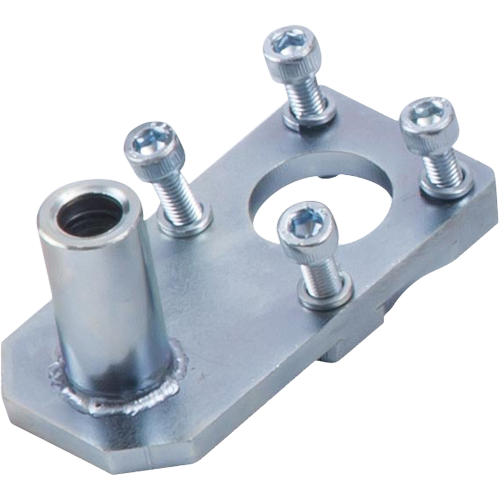

Adaptor Plate For TS405
Adaptor plate for mounting AVF-V to TS402 / TS403. Included accessory.

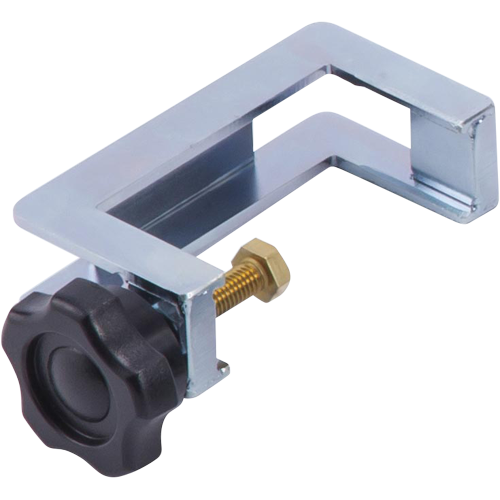

Stopper
Optional accessory stopper for the AFS-P automatic feeding system.
